Kattsafe™ Modular Aluminium Step Ladder with 300mm Platform - 1000mm

SKU: ST575M.1000

$2,269.58 excl. GST
Fast Onsite Delivery
30 Day Guarantee
100% Secure

Share

Description

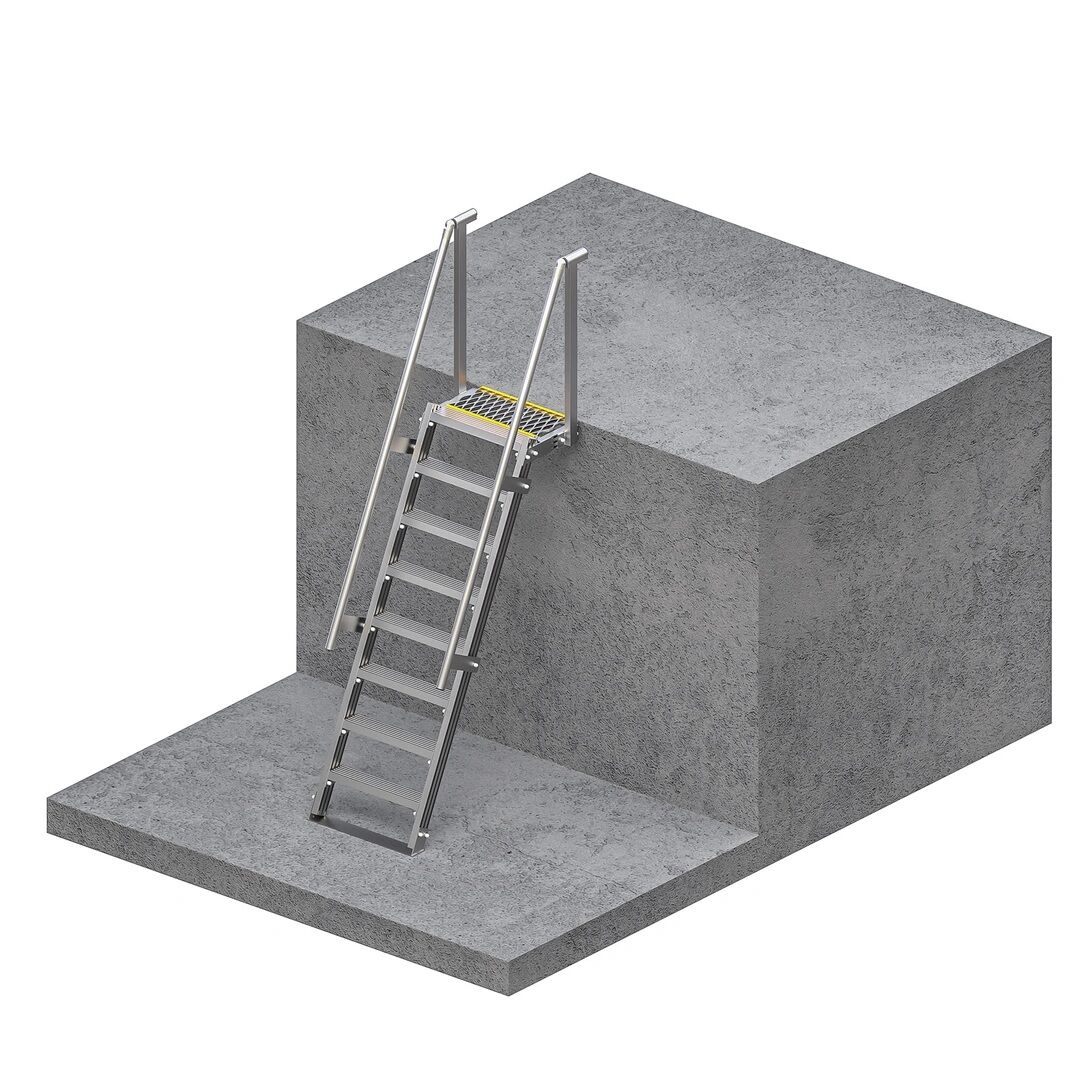

System overview

Step ladders provide safe and easy access to varying heights, including roof areas, service platforms, and other elevated areas where frequent access is required and are manufactured to Australian Standard AS/NZS 1657:2018, which ensures a high level of safety and confidence for maintenance personnel.

They can be delivered flat-packed to the site and are designed to conform to Australian & New Zealand Standard AS/NZS1657:2018.

  • Designed to attach to the front face of the structure or platform

  • 150kg rated

  • Designed to attach to the underside of the roof hatch

  • High level of safe and easy access

  • Slip resistance tested to AS4586:2013

  • Lightweight, robust aluminium construction

  • Modular design for easy delivery and site assembly

DIMENSIONS
  • Maximum height – 6.0m
  • Overall ladder width – 650mm
  • Distance between handrails – 560mm
  • Step size – 600mm (L) x 100mm (W) x 38mm (H)
  • Step spacing – 200 – 250mm
  • Stile extension above landing surface – 1000mm
  • Minimum clearance behind ladder – 150mm
  • Minimum distance between rest platforms – 6.0m
  • Angle of slope – 65°
FIXINGS
  • Timber fixing – 14g type 17 tek screw
  • Metal fixing – M10 stainless steel bolt set
  • Concrete fixing – M10/ 75mm mechanical concrete anchor
  • Metal roof deck fixing – 8mm construction grade Bulbtite rivet
  • Composite panel fixing – 8mm construction grade Bulbtite rivet or M8 through bolt set
WORKLOAD LIMIT
  • Recommended for single-person use – 150kg rated.
  • Support structure integrity, suitability, and fixing method to be assessed and determined by a competent person before installation
COMPLIANCE

Alto Step Ladder Access Systems are designed and manufactured generally in accordance with the requirements of Australian Standards AS1657:2018 and relevant statutory OHS Codes of Practice/Guidelines.

PRODUCT WARRANTY

3 years from date of purchase, subject to correct installation, use, and maintenance in accordance with the manufacturer’s specifications and recommendations.

INSPECTION AND MAINTENANCE

Visual inspection for any damage or loose fixings must be done periodically and before use. No certified maintenance required. Basic wear/tear preventative maintenance is recommended, as per the manufacturer’s specifications and recommendations. (Refer to the instruction manual).

IMPORTANT NOTE

Failure to supply and/or install proprietary product in accordance with the above specification and installation/ usage guidelines voids complete system certification and/or warranty

Call the Safe Access Team today to dicuss your site requirements on 1300 554 192

Specifications
SKU ST575M
Brand ALTO
